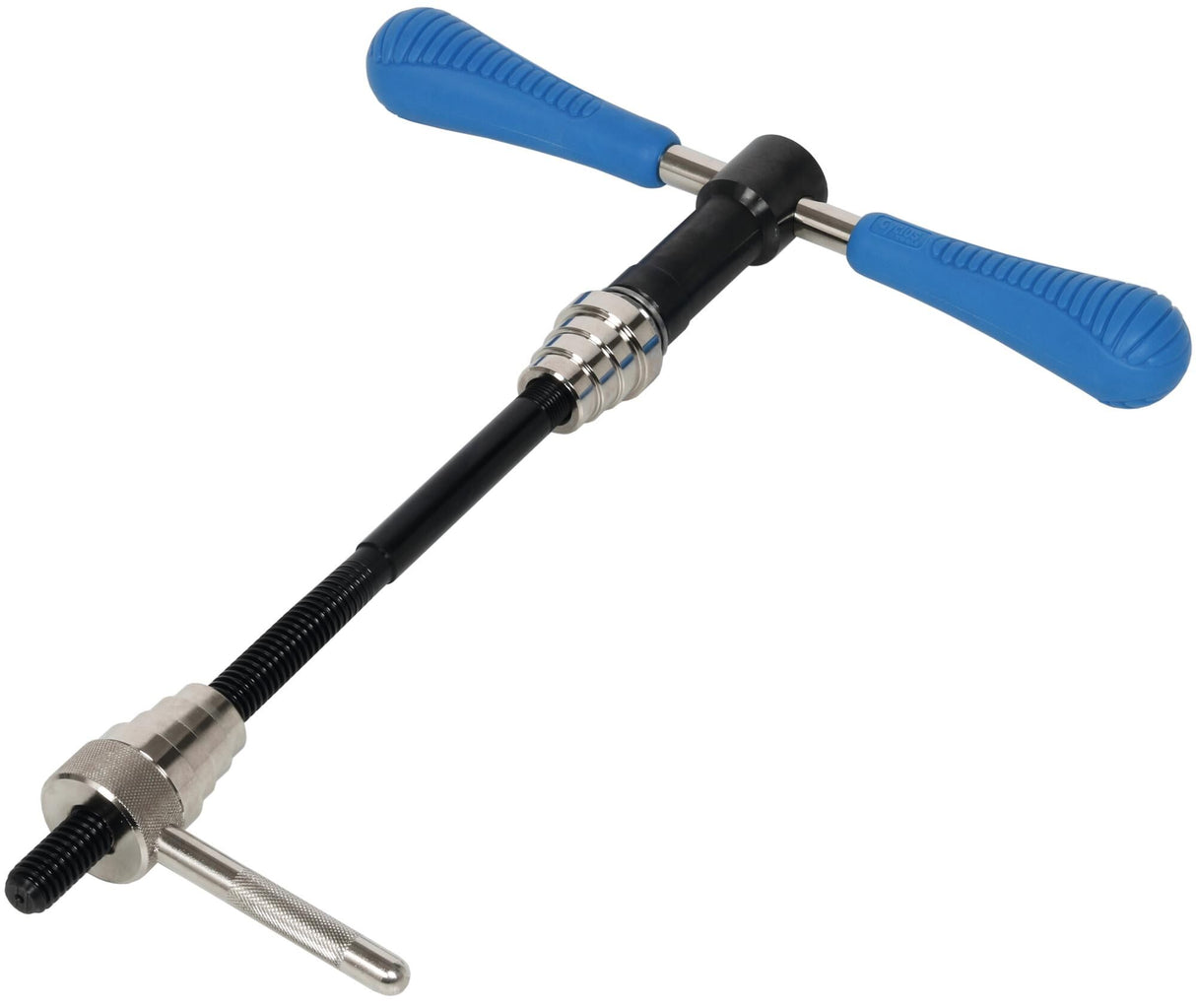

Cycplus Cycle Stallhead Cup press 1 and 1.1 8 CPL

Cycle head press set suitable for 1 "and 1 1/8" ball head.

• Ballhead Cup press for pressing the outer head cup with bullet guidance
• Max. Baller head length: 200 mm

The tool is to squeeze the lower and upper cup evenly into the head tube. Before use, it is highly recommended to check whether the cup fitting is not damaged. If this is the case, adjust the size with the head cutter.

Tip: Put some fat on the head tube to be squeezed and the Lower Scale and it is not only easier, but is also better for the tools.

Cycle 720009

With This Tool the Top and the Bottom Head Cup Will Be Pressed Into The Steerer Tube SimultaneUously. Scope of Delivery: - Tool Holder with T -Handle, - Trapezoidal Thread Spindle 360mm, - Press Bush Pair, - Threaded Sleeve, - thrust Bearing. Preparation: Screw the trapezoidal thread spindle with the side, which has a fine thread, into the tool Holder. Put the thrust bearing and then one of the press bushes on the spindle. Use: Place the Top Head Cup on the Press Bush and Insert the Tool Into The Steerer Tube. Place the bottom head cup on the other press bush and put both of them on the spindle of the tool. Afterwards Screw the threaded Sleeve on the trapezoidal therad of the spindle. Rotate the Tool Holder and Start to Press the Head Cups. Pay Attention, that the Cups are not getting jammed duration the work. Before you start to press the head cups, check the diameter tolerance of the cup seat in the frame. You might need to correct the size by Milling and Facing the Steerer Tube First. Use corresponding head tube facing tools (code: 720005; 720006; 720210). Tip: Put some lubricant on the head cups to be pressed. It will make the work Easier and Safe the Tool.

Article number: 7720009

EAN: 8590831240239

Brands: Cycle

Type of tools: ball head

Colour.

Silver bluebal headcup press for pressing the outer head cup with ball guide for 1 inch and 1 1/8 inch cycle ball headcup press 1 and 1.1/8 cpl cycle Balhead Cup press 1/1
