Geataí crankset cdn s150

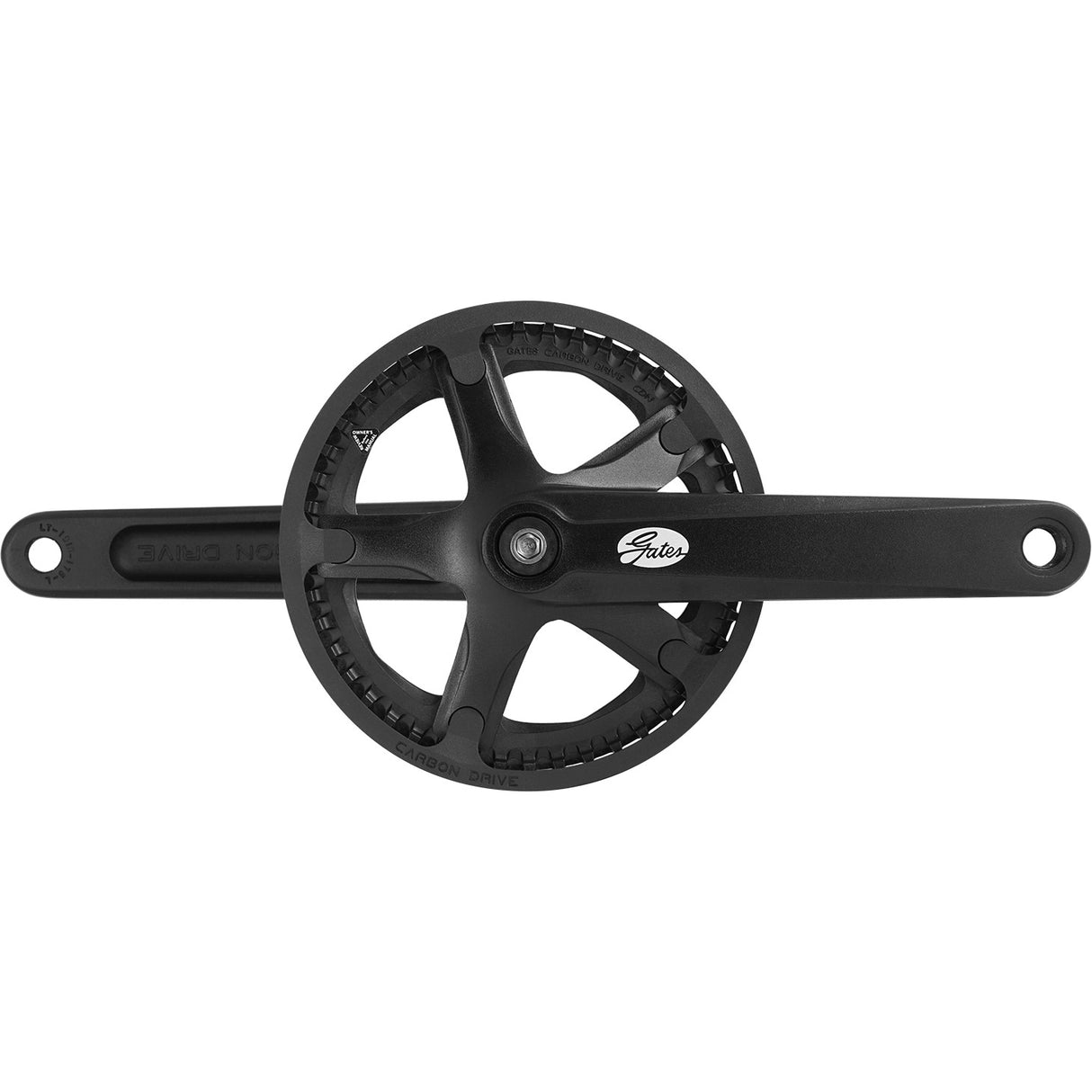

Product Description The Gates S150 crankset has a matt finish throughout and comes with a pre-mounted CDN belt drive sprocket and a composite protective ring. This saves time when setting up the belt drive for your city bike. Specifications:Application:CityBelt sprocket attachment:130 mm bolt circle diameter, 5-armTechnical Information:Series:CDNCrank Arm Material:aluminiumBelt drive sprocket material:compositeGradation:46 tooth, 50 tooth, 55 toothCrank Arm Length:170.0 mm, 175.0 mmBelt line:depends on the gear hubCompatible BSA Shell Width:68 mmRecommended Bottom Bracket:4-sided JIS (e.g. Shimano BB-UN300, Thun Zumba)Belt (rec.):CDN belt (tooth pitch 11 mm)Note from the manufacturer:The CDN system is not approved for mountain bikes, e-bikes with a mid-drive motor or gearbox, bikes without gears, or touring bikes. Features:CDN level: cost-effective CenterTrack variantsuited for city and asphalt roadsmiddle guide groove (CenterTrack)crank with mounted CDN pulley: time saving during set-upwith belt protection ring made of synthetic material, mitigating damagegenerates the required belt lineconcentric mounting minimises fluctuations in belt tensionmatt black anodised crank armsTechnology:Gates Carbon Drive System The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, e-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past. Clean: No lubricant means no accumulation of grease and dirt. Smooth and silent operation: no metal-to-metal contact of the chains. Light: The whole system weighs less than a standard bicycle chain. No elongation: Belt does not need to be re-tensioned or replaced. Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants. Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt. Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework. Manufacturer Numbers:170.0 mm 46 tooth:FC S150 JIS 170 BLK 46T CDN GD175.0 mm 46 tooth:FC S150 JIS 175 BLK 46T CDN GD170.0 mm 50 tooth:FC S150 JIS 170 BLK 50T CDN GD175.0 mm 50 tooth:FC S150 JIS 175 BLK 50T CDN GD170.0 mm 55 tooth:FC S150 JIS 170 BLK 55T CDN GD175.0 mm 55 tooth:FC S150 JIS 175 BLK 55T CDN GDContents:1 x Gates S150 right crank arm1 x Gates S150 left crank arm1 x Gates CDN Belt Drive Sprocket, mounted (46, 50 or 55-tooth)1 x Gates protective ring (mounted)2 x crank bolts Manufacturer: Universal Transmissions GmbH Walkmühlenstraße 195 99974 Mühlhausen Germany shop@carbondrive.net
