5410329259655

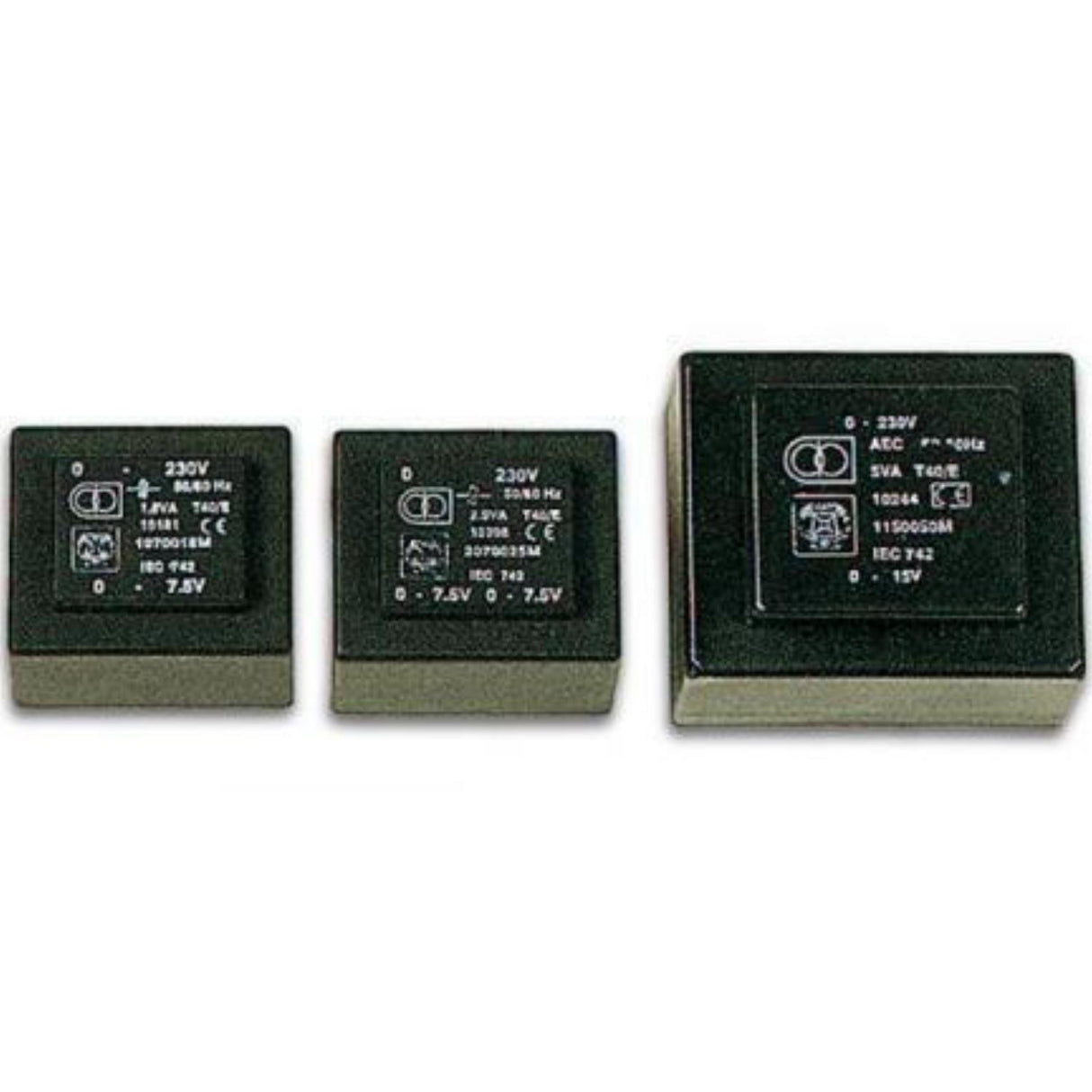

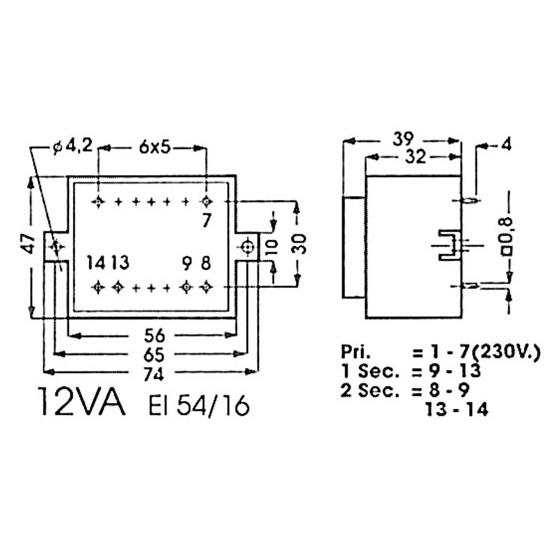

voltage: 2 x 9V current: 2 x 0.670A insulation resistance: >5Mohm / 500Vcc dielectric strength: >5kV min. designed for an ambient temperature of max. 40°C materials of thermal class E 120° short-circuit resistant up to 3VA possibility of protection by means of a thermal fuse max. temperature for class E: 95°C primary voltage: 230V ± 10%, 50/60Hz secondary voltage tolerance: +7% - 3% at 230V and max. load perfect solderability for a wave bath CE label creepage distance and clearances according to IEC742 figure: 1*: two-chamber coil 2*: primary winding 3*: epoxy resin encapsulation 4*: secondary winding 5*: connection pins 6*: polyamide housing 7*: magnetic core 8*: safety transformer 9*: short-circuit proof 10*: primary voltage 11*: nominal power / nominal temperature 12*: manufacturer's reference 13*: order code 14*: approval: 15*: nominal secondary voltages Ask a product question
