Shimano caliper festebolt type c for bakre flatmontering

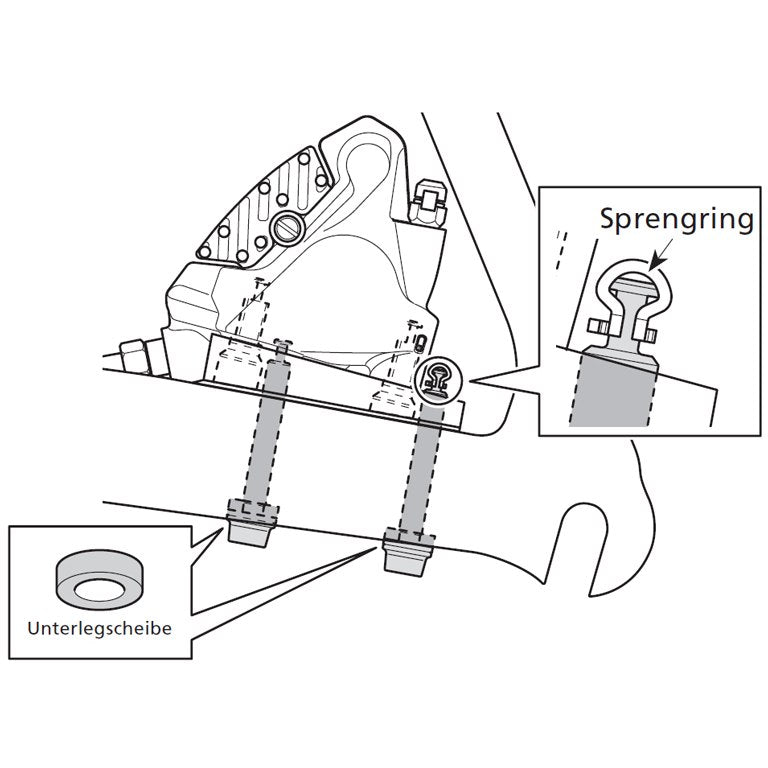

Product Description - mounting the brake caliper on the frame The Shimano type C flat mount rear bolt is used to mount flat mount rear brakes to the frame. The brake caliper is either attached directly to the chainstay (with a 140 mm brake rotor) or via an adapter (with a 160 mm brake rotor). The bolt is available in different lengths for frame diameters from 10 to 35 mm. Specifications: Type: Brake caliper bolt Drive: 4 mm hex Material: steel Technical Information: Max. Torque: 8 Nm Compatibility: BR-RS305 BR-RS405 BR-RS505 BR-RS805 BR-U5000 BR-R8170* BR-R8070 (15, 20, 25, 30 mm only) BR-R7170* BR-R7070 BR-4770 BR-RX810 BR-RX400 BR-RX820* BR-RX820-LE* BR-UR300 BR-M8110-R (15, 20, 25, 30 mm only) BR-M7110-R (15, 20, 25, 30 mm only) * 1 type C bolt and 1 type C2 bolt are required. Type C is closer to the dropout and is secured with a snap retainer. Features: - for installing the rear brake caliper on the chainstay (when using 140 mm or 160 mm rotors on FM 160/180 frames) - for installing the SM-MA-R160-DD adapter on the chainstay (when using 180 mm or 160 mm rotors on FM 140/160 frames) Models: 10 mm: Frame Diameter: 10 mm Bolt Length: 23 mm Manufacturer Number: Y-8N208000 15 mm: Frame Diameter: 15 mm Bolt Length: 28 mm Manufacturer Number: Y-8N208050 20 mm: Frame Diameter: 20 mm Bolt Length: 33 mm Manufacturer Number: Y-8N208010 25 mm: Frame Diameter: 25 mm Bolt Length: 38 mm Manufacturer Number: Y-8N208020 30 mm: Frame Diameter: 30 mm Bolt Length: 43 mm Manufacturer Number: Y-8N208030 35 mm: Frame Diameter: 35 mm Bolt Length: 48 mm Manufacturer Number: Y-8N208040 Contents: 1 x Shimano flat mount type C bolt Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
