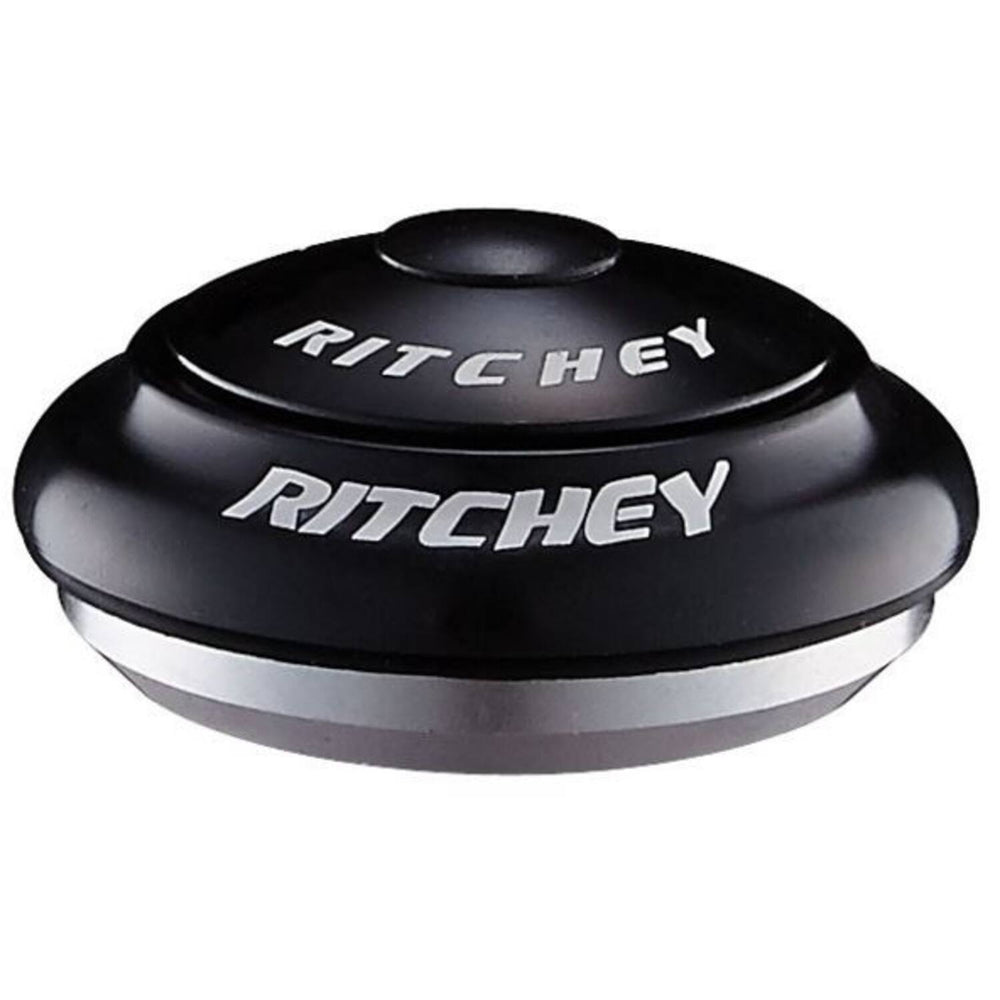

Ritchey Comp Cartridge IS41 28.6 Drop-in Headset Top Assembly

Full complement stainless steel angular contact bearing packed with high-density Ritchey grease. Top cap: 8.3, Material: Alu, Upper Fit (S.H.I.S.): IS41/28.6, Upper Bearing OD: 40.8, Top Cover OD: 46, Bearing: Sealed cartridge, Weight: 35-44g.

Item number 33035337013 EAN 796941332736 Brands Ritchey Integration method Drop in (Integrated) Headset part Upper Inner diameter head tube upper (mm) 41 Outer diameter head tube upper (mm) 46 Fork tube diameter upper (mm) 28.6 Type DROP IN Headset size 1 1/8 Inch Product Description Compared to less-expensive Comp headsets, Comp Cartridge headsets have higher-quality sealed bearings. Use:Designed for 1 1/8" upper head tube diameters combined with standard 1 1/8" or 1 1/8" - 1.5" tapered forks.Specifications:Application:Cross CountryTop Bearing:1 1/8"Steerer Tube:1 1/8"Design:integrated (IS)Technical Information:Bearings:cartridgeTop Outer Diameter:41 mmTop Inner Diameter:28.6 mmTop Cap:8.3 mmFeatures:Series: CompSealed bearingsStandardized Headset Identification System (S.H.I.S.):In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined. Nomenclature:EC:Bearings contained within headset cups that are located outside of the frame (External Cup)ZS:Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)IS:Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)Manufacturer Number:33035337013 Contents:1 x Ritchey Comp cartridge drop-in bearing1 x bearing cover1 x top cap with bolt and star nut Manufacturer: Ritchey Design Inc. 575 Old County Road San Carlos CA 94070 USA info@ritcheylogic.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
