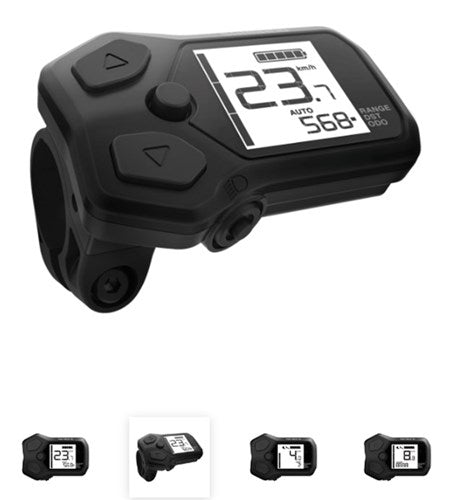

SHIMANO Cycle Computer SC-E5000 The SC-E5000 cycle computer offers a simple and compact menu and has a clear display that shows the various functions of the SHIMANO STEPS E-BIKE system. The device also functions as an assist switch that allows the rider to increase or decrease the assist level with large, easy-to-find buttons. Switch and display in one »Left-hand operation for bikes with flat handlebars ・Simple & compact menu display with monochrome font »Assist mode selection buttons (up/down) »Light on/off button »Display menu change button －RANGE/DST/ODO (range/distance/odometer) －GEAR > DI2 gear position －AUTO > automatic shifting －ADJUST > adjustment mode －Walk assist function »No on/off switch ・SD50 port specified SHIMANO STEPS E5000A - Cycle Computer - E-TUBE - E-BIKE - Assist Switch The SC-E5000A cycle computer offers a simple and compact menu and has a clear display that shows the various functions of the SHIMANO STEPS E-BIKE system. The device also functions as an assist switch that allows the rider to increase or decrease the assist level with large, easy-to-find buttons.

Switch and display in one

Left-hand operation for bikes with flat handlebars

Simple & compact menu display with monochrome font

Assist mode selection buttons (up/down)

Light on/off button

Display menu change button

RANGE/DST/ODO (range/distance/odometer)

GEAR > Di2 gear position

AUTO > automatic shifting

ADJUST > adjustment mode

Walk assist function

No on/off switch

SD50 port specified

*Must be used together with EW-AD305 Specifications:

Model: SC-E5000A

Series: SHIMANO STEPS E5000 Series

Color: Black

Remarks * Left on the handlebar (normal specification and I-SPEC EV specification). ** Setting by E-TUBE PROJECT. *** Drive unit setting by E-TUBE PROJECT

Backlight: Yes

Light on/off button: Yes

Assist mode display: Yes

Battery charge level: Yes

Current Speed: Yes

Gear position display: Yes

Automatic shift mode: Yes

Trip distance (DST): Yes

Odometer (ODO): Yes

Estimated range (RANGE): Yes

Error message: Yes

Settings menu Reset trip distance: Yes

Firmware update via E-TUBE Project: Yes

Display change button: Yes

E-TUBE connector (pcs.): 0

E-TUBE port (pcs.): 1

LCD size (inch): 1.4

Language: English

Settings menu adjustment for automatic shift timing: *** -

Settings menu adjustment for shifting: *** -

Settings menu light on / off *** -

Settings menu start mode (with Di2): Yes

Display content maintenance warning *** X

Display content walk assist: Yes Shimano cycle computer Steps SC-E5000A
